RV Gunnerus is equipped with a range of sensors measuring various parameters connected to ship performance. The data from the sensors may be accessed by internal and external researchers.

Contact the crew or coordinator for more information.

Want to install new sensors?

Available data sets

GUNNERUS Seapath data   |   Wave radar data   |   Engine data   |   Crane data

3D model of the vessel

A 3D-visualisation of the vessel is available at the Intelligent Systems Lab @NTNU in Ålesund, with walk-though functionality, sensor outputs and digital twin functionality.

Intelligent Systems Lab in Ålesund

Available data sets

GUNNERUS Seapath data

sensor ID Sensor tag Description Unit Sampling [Hz]
0 unix_time seconds since 1970 seconds 10
1 latitude north–south position degrees 10
2 longitude east–west position degrees 10
3 height height above ellipsoid cm 10
4 heave See image below cm 10
5 northVelocity North bound velocity cm/sec 10
6 eastVelocity East bound velocity cm/sec 10
7 downVelocity Vertical velocity cm/sec 10
8 roll See image below degrees 10
9 pitch See image below degrees 10
10 heading See image below degrees 10
11 rollRate See image below degrees/sec 10
12 pitchRate See image below degrees/sec 10
13 yawRate See image below degrees/sec 10

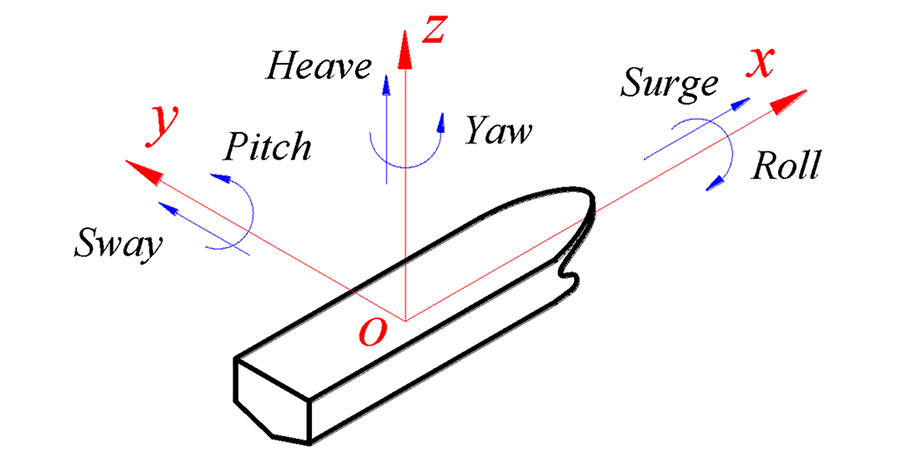

Illustration of R/V Gunnerus Seapath data

GUNNERUS Wave radar data

Data from the MIROS Wave Radar is sampled and distributed onboard at 100Hz. Before transmission to the onshore server, the rate is reduced to 10Hz.

sensor ID Sensor tag Description Unit
001
002 SDp1 Primary wave spectral density m2/Hz
003 Hm0 Significant wave height m
004 Hmax Maximum wave height m
005 HTmax Wave height of maximum wave period m
006 Tp1 Primary wave peak period s
007 Tp2 Secondary wave peak period s
008 Tpc Calculated wave peak period s
009 Ts Significant wave period s
010 Tm0-1 Energy wave period s
011 Tm0-2 Integral wave period s
012 Tm02 Mean zero up-crossing period s
013 Tm01 Mean period s
014 Tmax Maximum wave period s
015 THmax Wave period of maximum wave height s
016 Tm24 Average wave crest period s
017 Dp1-t Primary wave peak direction, true deg
018 Dm1-t Primary wave mean direction, true deg
019 SPR1 Primary wave directional spread deg
020 Dpt-t Total energy peak direction, true deg
021 Dmt-t Total energy mean direction, true deg
022 SPRt Total energy directional spread deg
023 ʋ Spectral band width -
024 Sk Skewness -
025 Sm02 Wave steepness -
026 m0 Zero order moment m2
027 m1 1st order moment m2/s
028 m2 2nd order moment m2/s2
029 m3 3rd order moment m2/s3
030 m4 4th order moment m2/s4
031 m-1 1st order negative moment m2s
032 m-2 2nd order negative moment m2s2
033 Vp1 Primary wave phase velocity m/s
034 Lp1 Primary wave length m
035 Cg1 Primary wave group velocity m/s
036 Dp2-t Secondary wave peak direction, true deg
037 Dm2-t Secondary wave mean direction, true deg
038 SPR2 Secondary wave directional spread deg
039 Dp1-r Primary wave peak direction, relative deg
040 Dm1-r Primary wave mean direction, relative deg
041 Dp2-r Secondary wave peak direction, relative deg
042 Dm2-r Secondary wave mean direction, relative deg
043 Dpt-r Total energy peak direction, relative deg
044 Dmt-r Total energy mean direction, relative deg
045 Gamma Peak Enhancement factor -
046 Obs Observation period min



GUNNERUS Engine data

sensor ID Sensor tag Description Unit Sampling [Hz]
0 unix_time seconds since 1970 seconds 10
1 Engine1/engine_speed   rpm 10
2 Engine2/engine_speed   rpm 10
3 Engine3/engine_speed   rpm 10
4 Engine1/lube_oil_pressure   bar 10
5 Engine2/lube_oil_pressure   bar 10
6 Engine3/lube_oil_pressure   bar 10
7 Engine1/coolant_temperature   °C 10
8 Engine2/coolant_temperature   °C 10
9 Engine3/coolant_temperature   °C 10
10 TBD     10
11 TBD     10
12 TBD     10
13 TBD     10
14 TBD     10
15 TBD     10
16 Engine1/boost_pressure   bar 10
17 Engine2/boost_pressure   bar 10
18 Engine3/boost_pressure   bar 10
19 Engine1/engine_load   kW 10
20 Engine2/engine_load   kW 10
21 Engine3/engine_load   kW 10
22 Engine1/exhaust_temperature1   °C 10
23 Engine2/exhaust_temperature1   °C 10
24 Engine3/exhaust_temperature1   °C 10
25 Engine1/exhaust_temperature2   °C 10
26 Engine2/exhaust_temperature2   °C 10
27 Engine3/exhaust_temperature2   °C 10
28 Engine1/fuel_consumption   Liter/hour 10
29 Engine2/fuel_consumption   Liter/hour 10
30 Engine3/fuel_consumption   Liter/hour 10
31 Engine1/lube_oil_temperature   °C 10
32 Engine2/lube_oil_temperature   °C 10
33 Engine3/lube_oil_temperature   °C 10



GUNNERUS Crane data

sensor ID Sensor tag Description Unit Sampling [Hz]
0 unix_time seconds since 1970 seconds 100
1 dp_main_cyl Hydraulic pressure bar 100
2 extension_length_outer_boom Total boom stretch decimetre 100
3 main_boom_angle Inner tilt angle degrees 100
4 outer_boom_angle Outer tilt angle degrees 100
5 slewing_angle Crane yaw angle degrees 100



Installing new sensors

It is possible to request installation of additional sensors and related equipment on the vessel, either for the duration of a project or to become part of the permanent infrastructure. Such requests should be sent to the coordinator of Gunnerus using the application form below. The following terms and conditions apply:

  • Applications for the installation of equipment must be sent to the faculty administration at the Faculty of Natural Sciences, c/o the coordinator of Gunnerus. Only once an application has been approved can an agreement for the installation be negotiated.
  • The application must provide information about what is to be installed, if the installation is temporary or permanent and if temporary, for what time period, and what resources are required from RV Gunnerus to install and operate the equipment.
  • All expenses related to installing and operating the equipment, including the days that RV Gunnerus is not available for cruises due to installation, must be paid by the applicant.
  • The applicant must provide sufficient information about the equipment to allow NTNU to make assessments of risks associated with the installation, including security and technical risks.
  • NTNU cannot guarantee data collected during ordinary cruises will meet the requirements for a specific project. Those wishing to install equipment should therefore make their own plans for cruises to collect the data they need.

The application form is available here (external link - Microsoft Forms)
